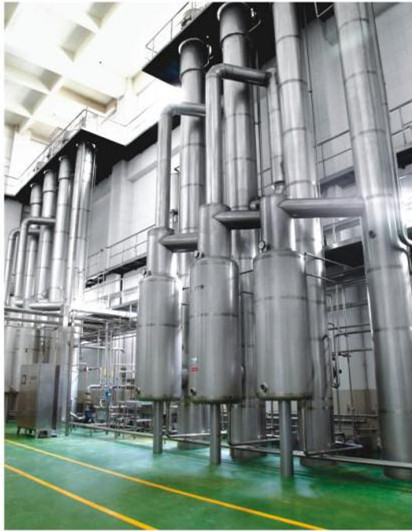

降膜蒸發器 EXCELLENT PROJECT
性能特點：
1、蒸汽加熱均勻、傳熱效率高、加熱時間短；
2、可充分利用廢熱作為熱源，降低生蒸汽用量；
3、物料經分配裝置均勻分配于蒸發器各加熱管內，物料在重力和真空誘導及氣流作用下，成膜狀自上而下流動，運動過程中與加熱管外壁加熱蒸汽發生熱交換而蒸發；
4、蒸發過程在真空環境，蒸發溫度相對低，蒸發器不易結垢；5、適用于發泡性物料蒸發濃縮，由于料液在加熱管內成膜狀蒸發，即形成汽液分離，同時在效體底部，料液大部份即被抽走，只有少部分料液與所有二次蒸汽進入分離器強化分離，料液整過程沒有形成太大沖擊，避免了泡沫的形成；
6、對于果汁或乳品蒸發濃縮，設備可同時具備殺菌功能，物料先經預熱，然后進入殺菌器，可達到90-125度，維持30-60秒左右，即進入效體，物料迅速閃蒸，溫度瞬間下降；
7、本設備可配備CIP清洗系統，實現就地清洗，整套設備操作方便，無死角；
8、可配蒸汽噴射泵，降低蒸汽消耗量，節約運行成本；
9、本設備連續進出料；
10、本設備可配置自動控制系統，具有完整的組態、操作、監視及控制功能，系統包括通訊接口、顯示報警、打印報表、控制等部分，實現進料量自動控制，加熱溫度自動控制，出料濃度自動控制，清洗自動控制。
Performance Characteristics：
1. Steam heating uniformity, has the characteristics of high heat transfer efficiency and short heating time.
2. It can use waste heat as heat source, reducing steam consumption.
3. The distribution device distribute the material evenly in the heating pipe of the evaporator, material will flow as membranous from top to bottom under the gravity, vacuum of induction and action of airflow, during exercise it will haveheat exchange with the heating steam on the external surface of the heating tube of evaporate.
4. The evaporation process in vacuum environment, the evaporation temperature is relatively low, the evaporator is not easy to scale.
5. Suitable for foaming material evaporation and concentration, the liquid in the heating pipe is evaporated inform of the membrane in evaporator, that will be the formation of vapor-liquid separation, at the same time in the bottom most of liquid is pumped away, only a little feed liquid mix with secondary steam enter into the separator enhanced separation, in the whole process did not form too high impact, which will avoid to form bubble.
6. For fruit juice or milk evaporation concentration, this equipment can have the functions of sterilization, material preheat at first, and then enter the sterilizer, can reach 90-125
degrees, maintain 30-60 seconds, in effect body, the material is quickly flash evaporated, temperature decline transiently.
7. Equipment can be equipped with CIP cleaning system, realize the cleaning in place, complete sets of equipment is convenient for operation, no dead angle.
8. Available to equip with a steam jet pump, reduce the steam consumption, save operation cost.
9. Equipment can continuous feeding and discharging.
10. The equipment can be deviced automatic control system, with the completely configuration, operation, monitoring and control function, system consists of communication interface, alarm, report printing, control parts, feed quantity automatic control, automatic control of heating temperature, outlet concentration automatic control, automatic control of the cleaning.
適用范圍：
適用于食品、制藥、化工、生物、環保、廢液回收等行業低溫連
續式蒸發濃縮，其具有傳熱效率高，物料受熱時間短等顯著特
點，更適用于熱敏性、發泡性等物料。
Scope Of Application：
Applicable to the food，pharmaceutical，chemical，biological，environmental protection，waste recycling and other sectors of the low-temperature continuous evaporation and concentration，this evaporator has characteristics of high heat transfer efficiency，short heating time of materials etc，so especially suitable for heat-sensitive，foaming material etc.
設備組成：
蒸發器、分離器、冷凝器、熱壓泵、真空泵、料液泵、冷凝水
泵、操作平臺、電氣儀表及閥門管路等系統組成。
Equipment Composition：
The evaporator，separator，condenser，heat pressure pump，vacuum pump，product liquid pump，condensate pump，operating platform，instrument and valve pipeline system etc.
